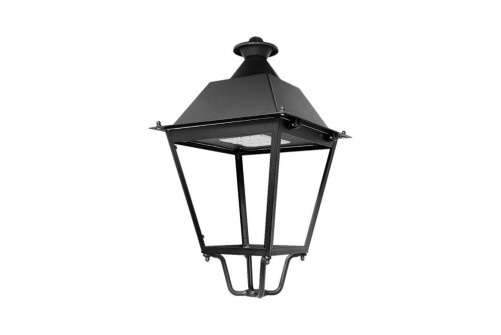

URBIS

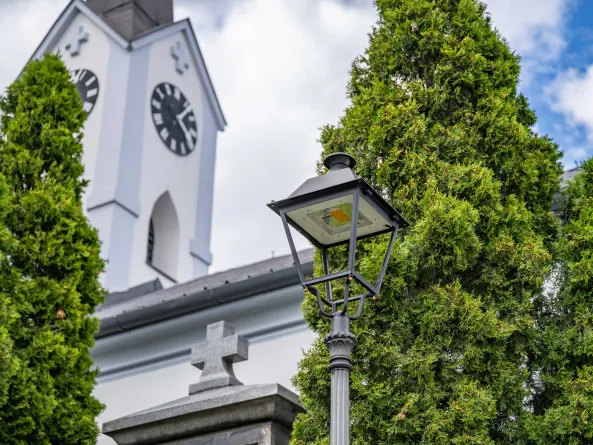

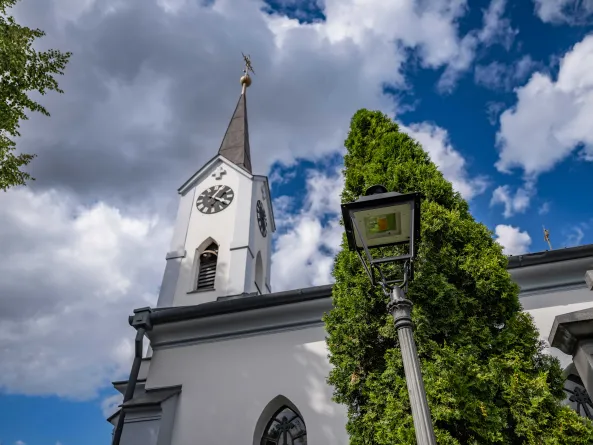

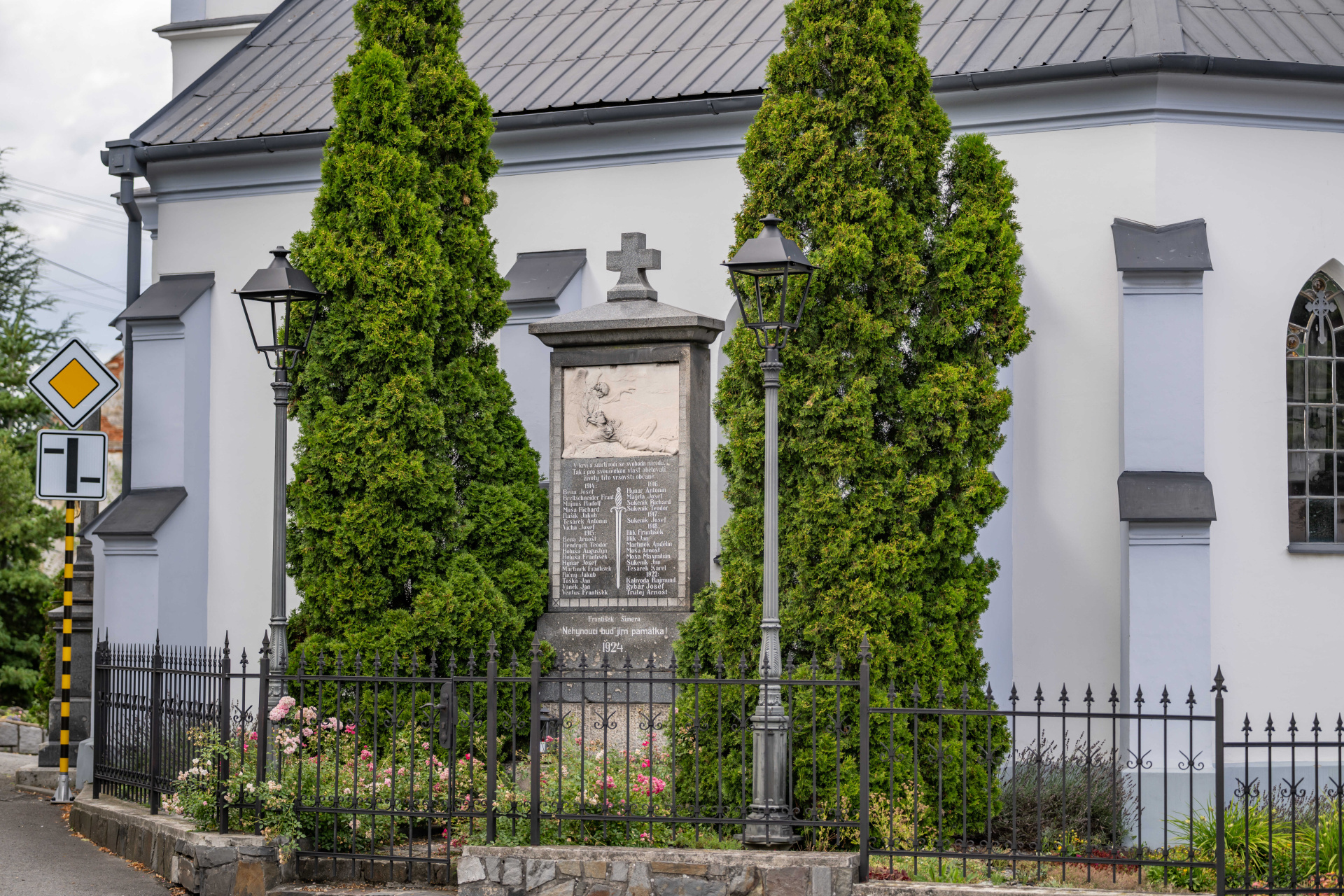

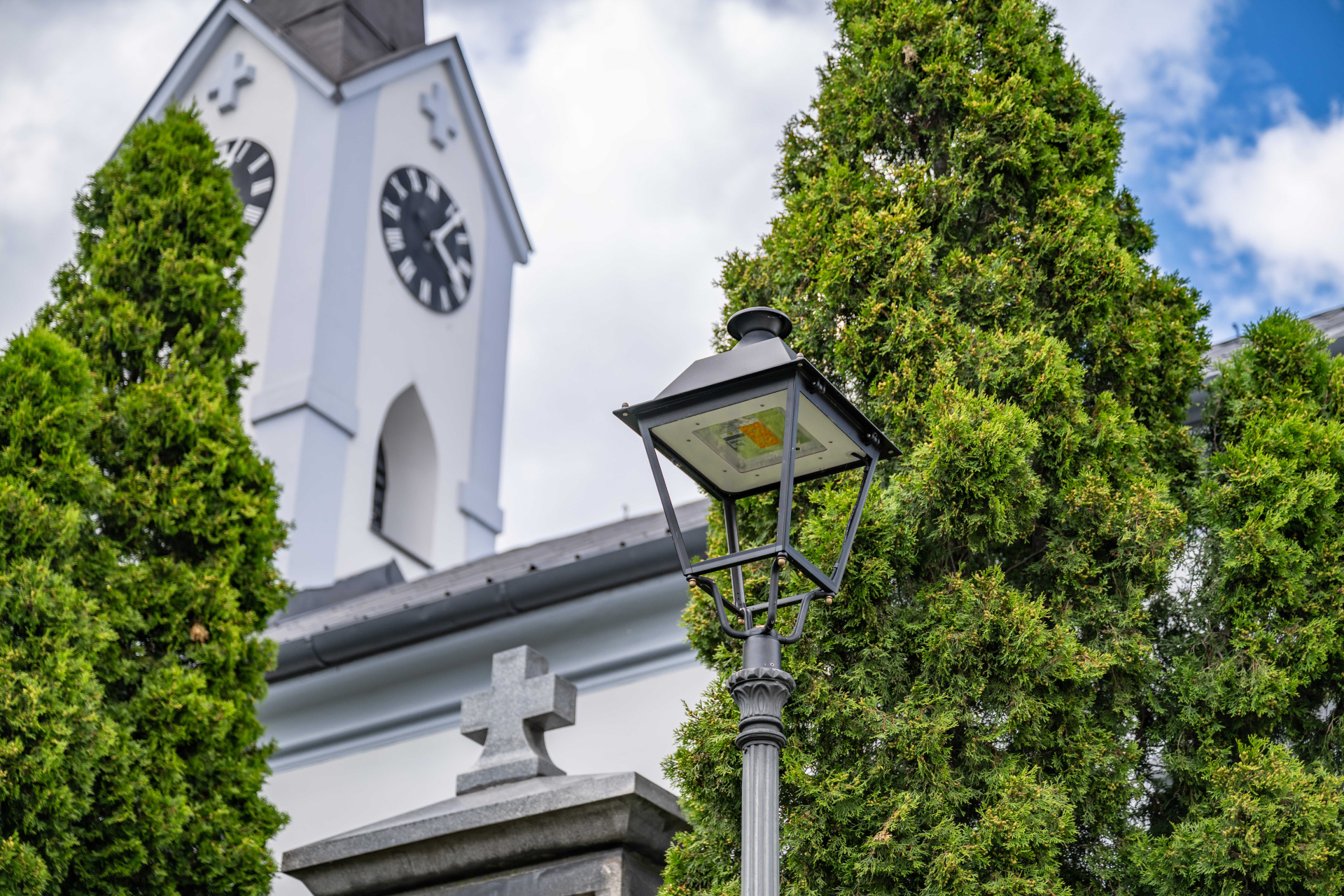

Historical LED park luminaire for public lighting.

Degree of protection (IP65) Degree of protection (IP65)

Specifications

Electrical parameters

Light source LED
Power voltage AC 230 V / 50 Hz
Connection method cable out
Driver electronic driver with surge protection L/N-Ground 10 kV
Surge protection additional surge protection 10 kV (S)
Possibility of regulation non-dimmable (not labeled), DALI (DALI), night dimming (A)
Emergency module NO

Light parameters

Optical system wide distribution (U1, U2)
Light distribution direct
Colour rendering index Ra > 40 (1,800 K), Ra > 70
Colour temperature AMBER, 1,800 K / 2,200 K / 2,700 K / 3,000 K / 4,000 K
Service life > 100,000 hrs. (L90B10)

Construction

Luminaire body aluminum cast

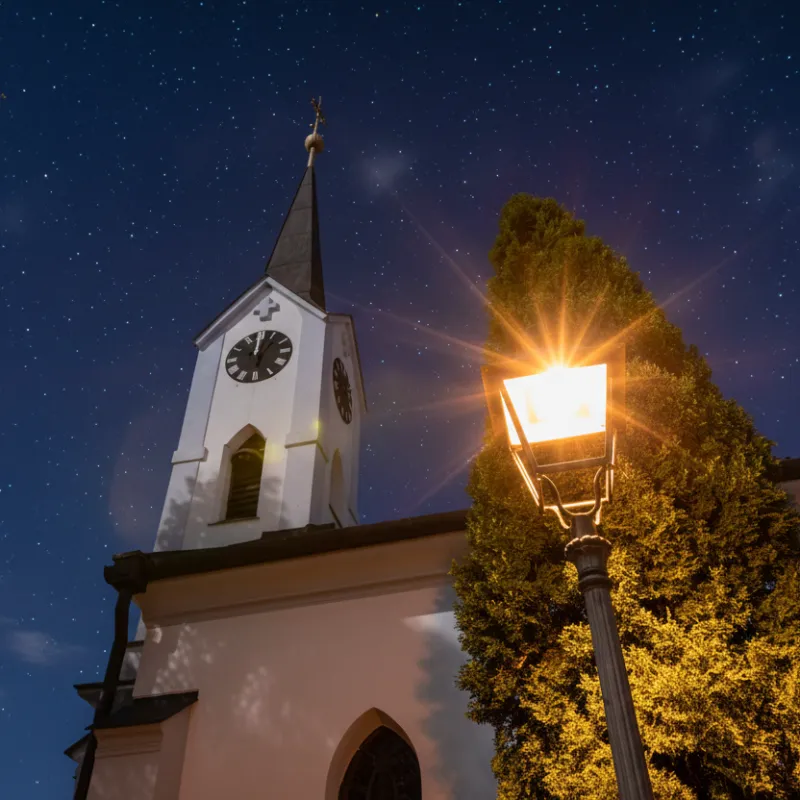

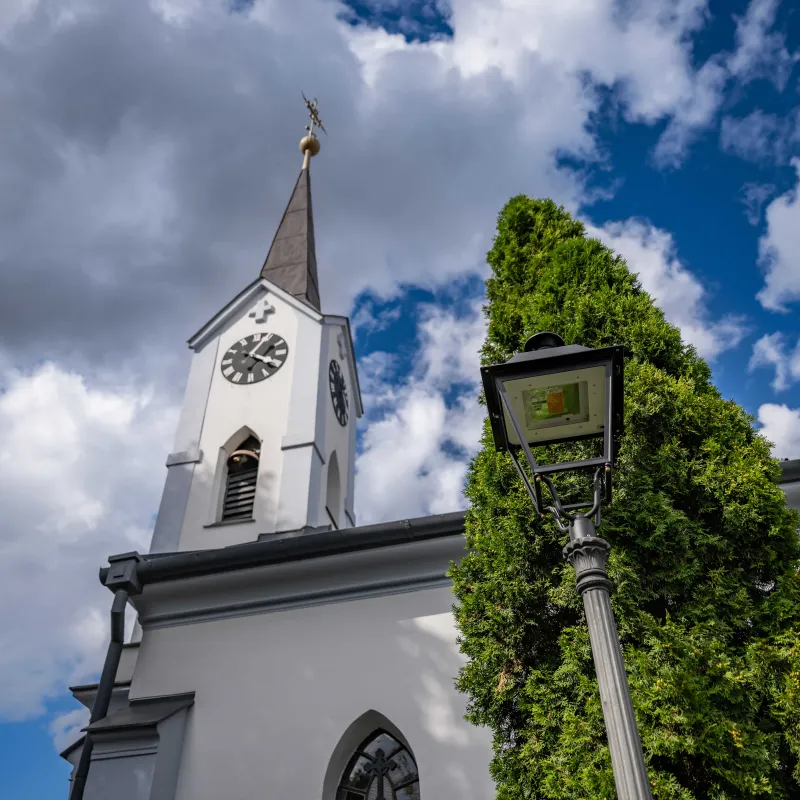

Colour RAL 7015
Surface type matte
Luminaire cover tempered glass

Safety

Protection class I
Maximum ambient temperature -40 / +45 °C
Protection of the luminaire's electrical part IP 65
Protection of the luminaire's optical part IP 65

Mounting

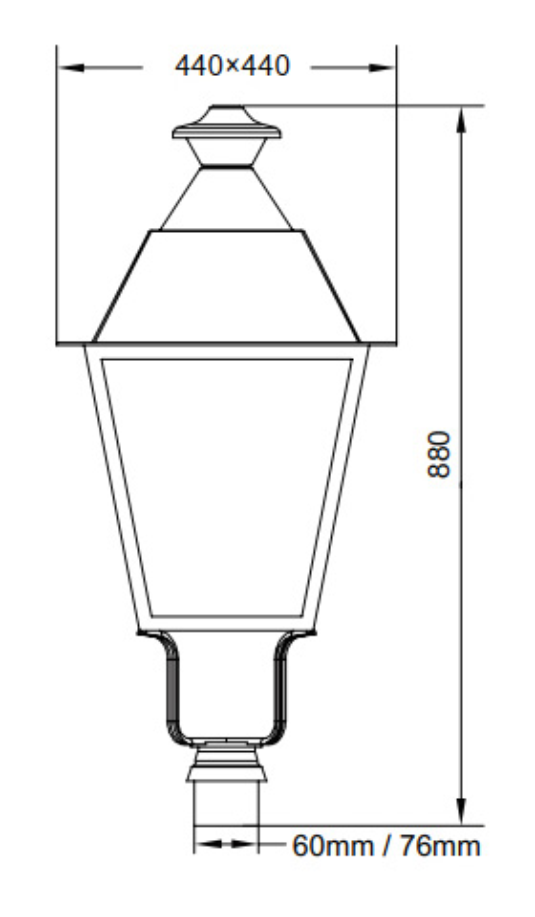

Method pole mounted (48–60 mm)
Recommended height max. up to 5 m
Use city parks, parking spaces, square, sidewalks, road classe S
