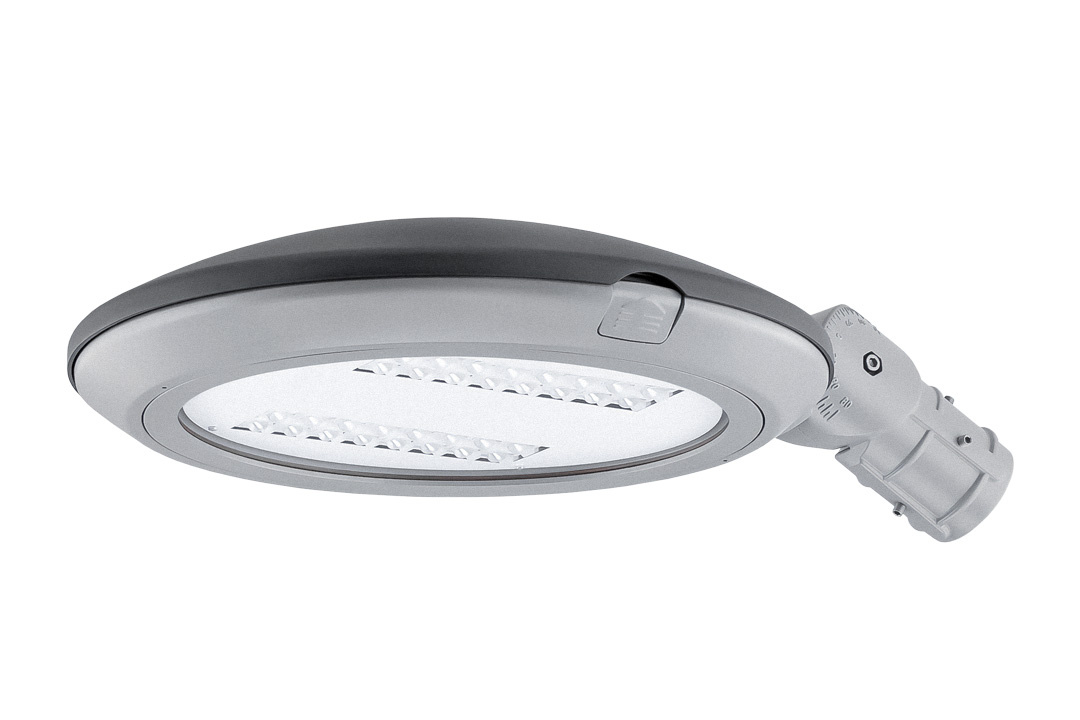

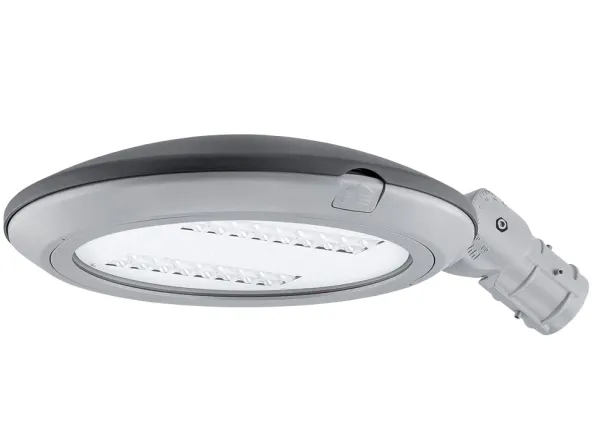

TEKO Flex

TEKO Flex = flexibility, wide range of chromaticity temperature, ENEC certification, and integration in “Smart City”.

DALI regulation DALI regulation
Mechanical resistance (IK9) Mechanical resistance (IK9)
Degree of protection (IP66) Degree of protection (IP66)
Electromagnetic compatibility Electromagnetic compatibility
Vibration Vibration
Optional colour according to the RAL colour chart Optional colour according to the RAL colour chart

Specifications

Electrical parameters

Light source LED
Power voltage AC 220–240 V / 50–60 Hz
Connection method leading out cable, leading out cable with connector (G)
Ballast part electronic driver with surge protection L/N-Ground 10 kV
Surge protection additional surge protection 10 kV (S)
Fuse fuse 6,3 A (J)
Possibility of regulation non-dimmable (not labeled), DALI (max. 3 care cable), night dimming (A)
preparation for wireless communication NEMA (N), Zhaga (Z)
Constant lumen output CLO (C)

Light parameters

Optical system roads (Mxx), roads (Lxx), directional (Pxx)
area (Uxx), combined optics (Kxx), BACK Light shades (BL1)
FRONT Light shades (FL1)
Light distribution direct
Colour rendering index Ra > 70, Ra > 80
Colour temperature

BLUE FREE (AMBER) / 2,200 K / 2,700 K / 3,000 K / 4,000 K / 5,000 K /
5 700 K / TW

Service life > 120 000 hrs. (L90)

Construction

Luminaire body aluminum cast
Colour RAL 7015/9006, other RAL (on request)
Surface type matte
Luminaire cover tempered glass

Safety

Protection class I, II
Maximum ambient temperature -40 / 55 °C
Ingress protection IP 66
Impact protection     IK 09
EMC YES
Vibration test YES
Static load test YES
Corrosion test – Salty spray YES (1500 hours)
Lifetime test YES

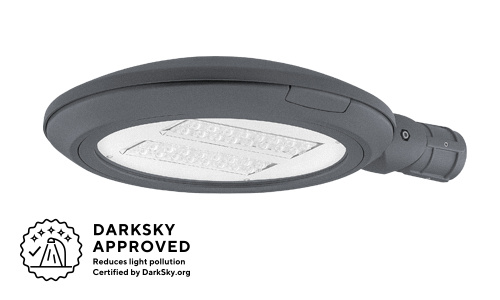

Certification ENEC+, ENEC, Zhaga-D4i , IDA Dark Sky ApprovedMounting
CB mark YES
RoHS YES
REACH YES



Method pole or boom mounted (48–60 mm)
Recommended height max. up to 12 m
   adjustable joint +/- 90°
Use bike path, outdoor areas, pedestrian zones, square, sidewalks



Luminaire ambient temperature TQ 25 °C
Initial color consistency: ≤ 5 SDCM
IDA fixture seal of approval relates to ≤ 3 000 K
To meet IDA requirements, the luminaires must be installed horizontally with the road
Optical and electrical parameters tolerance ± 10 %

When using the CLO function, the initial power and luminous flux
is 10 % lower than the value shown in the table. LDT curves with
CLO function have the letter “C” at the end of their marking.

The term BLUE FREE (AMBER) in lighting technology refers to light with a minimum amount of the blue part of the light spectrum (< 2%).

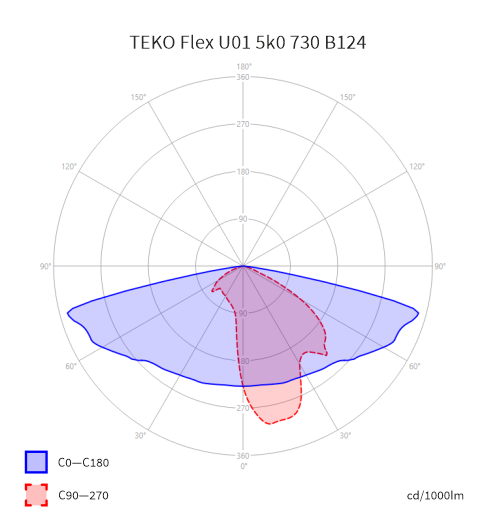

Photometry

Photometry

Energy label

Energy label
