SHANTA L

Modern outdoor LED luminaire for public lighting with integrated overvoltage protection and adjustable joint ± 15°.

DALI regulation DALI regulation
Mechanical resistance (IK8) Mechanical resistance (IK8)
Degree of protection (IP66) Degree of protection (IP66)
ENEC

Specifications

Electrical parameters

Light source LED
Power voltage AC 230 V / 50 Hz
Connection method leading out cable, leading out cable with connector (G), without cable (WO)
Ballast part electronic driver with surge protection L/N-Ground 10 kV
Surge protection additional surge protection 10 kV (S)
Fuse fuse 6,3 A (J)
Possibility of regulation without regulation (not labeled), DALI (DALI), night dimming (A)
preparation for wireless communication NEMA (N), Zhaga (Z)
Constant lumen output CLO (C)

Light parameters

Optical system roads (Mxx), roads (Lxx), directional (Pxx)
area (Uxx), pedastrian crossing (ZLx/ZPx) cannot ZP06 / ZL06
combined optics (Kxx), BACK Light mask (BM2)
Light distribution direct
Colour rendering index Ra > 70, Ra > 80
Colour temperature 2,700 K / 3,000 K / 4,000 K / 5,000 K
Service life > 100,000 hrs. (L90B10)

Construction

Luminaire body aluminum cast
Colour RAL 7015
Surface type matte
Luminaire cover tempered glass

Safety

Protection class I, II
Maximum ambient temperature -40 / +50 °C
Ingress protection IP 66
Impact protection IK 08

Mounting

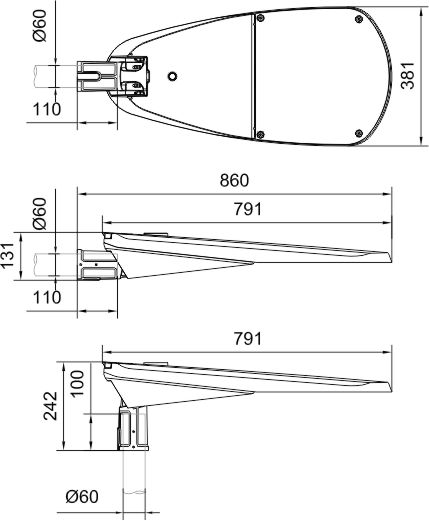

Method pole or boom mounted (48–60 mm); 60–76 mm (on request)
adjustable joint ± 15°
Recommended height max. up to 15 m
Use bike path, outdoor areas, pedestrian zones, sidewalks, road classes I. and II.



Variants

* Weight may vary depending on the luminaire variant
Optical and electrical parameters tolerance ± 10 %

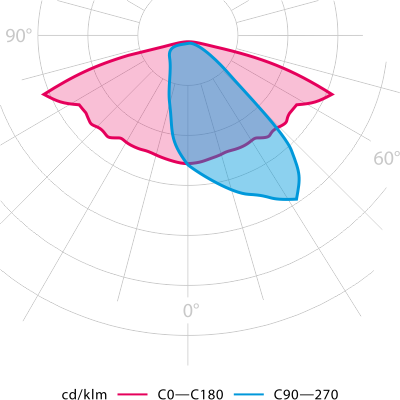

Photometry

Photometry

Energy label

Energy label
